Product Name : LF-RC-Series
Product Description

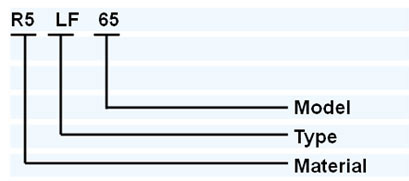

Ordering Code
Product Introduction
Shape
Description

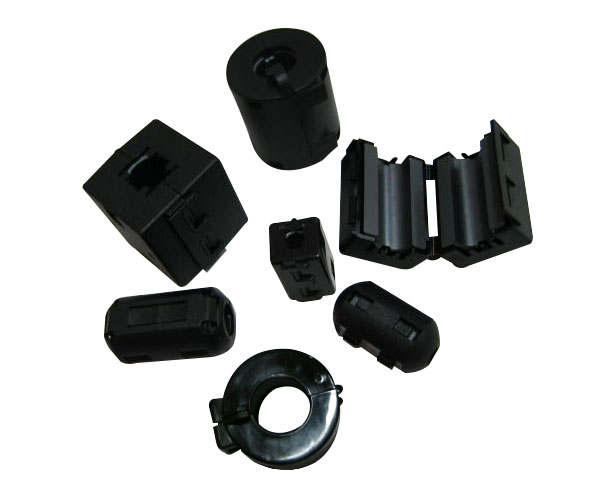

Round Cable Snap-its can accommodate round cables with diameters from 3.5 to 15 mm.
These parts are available in several materials and can be used to frequencies suppress up 500 MHz.
These cable cores will provide common-mode filtering for multi-strand cables anddifferential mode filtering for single conductors.
Using on : Digital Camera, LCD TV's liner, etc.

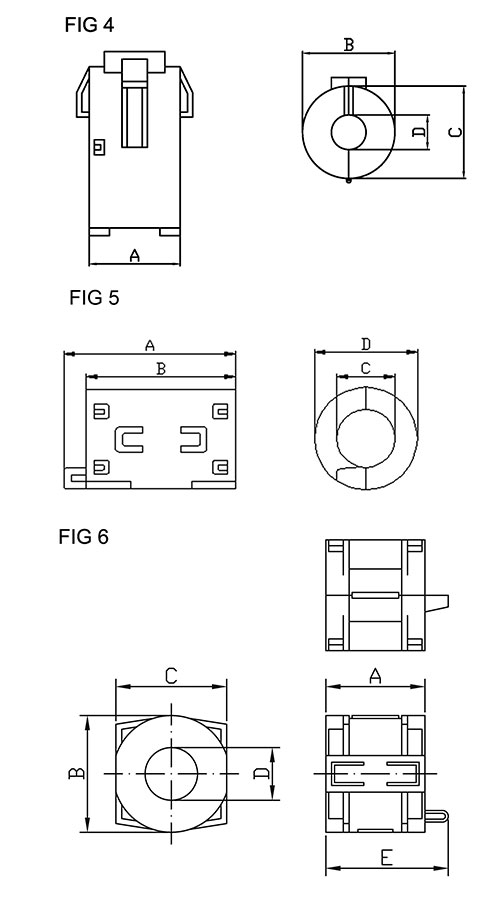

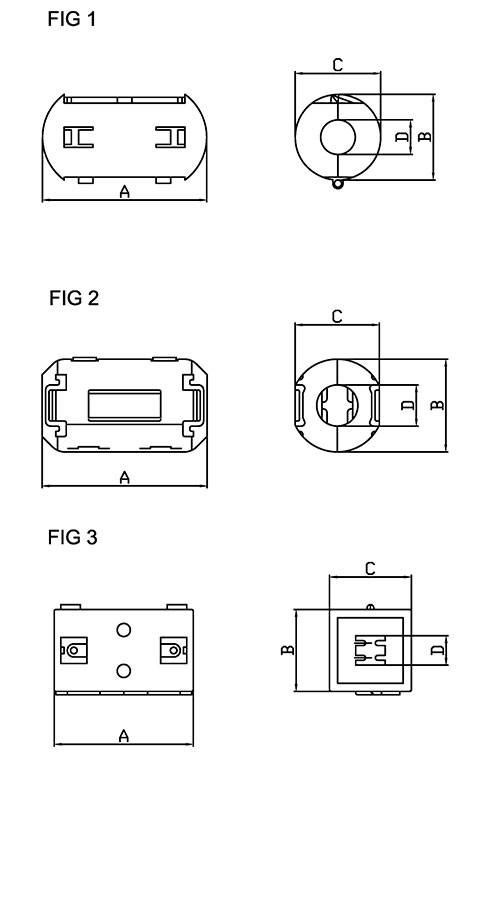

Dimensions(m/m)
| Core (mm) | A m/m | B m/m | C m/m | D m/m | Fig | Impedance Z1 | Impedance Z2 |
| LF0530A | 25.1 | 12.7 | 11.3 | 5.1 | 2 | 25 MHZ - 55 Min | 100 MHZ - 100 Min |
| LF0730 | 22.0 | 18.0 | 7.0 | 15.0 | 5 | 25 MHZ - 35 Min | 100 MHZ - 70 Min |
| LF0730A | 30.0 | 15.5 | 15.0 | 7.0 | 2 | 25 MHZ - 50 Min | 100 MHZ - 90 Min |
| LF0930 (LF-90-1) | 35.5 | 31.5 | 9.0 | 19.1 | 5 | 25 MHZ - 80 Min | 100 MHZ - 110 Min |
| LF0930A | 35.1 | 19.5 | 17.5 | 9.2 | 2 | 25 MHZ - 80 Min | 100 MHZ - 110 Min |
| LF0930B | 17.0 | 20.0 | 19.0 | 9.0 | 6 | 25 MHZ - 40 Min | 100 MHZ - 75 Min |
| LF-100 | 33.0 | 22.8 | 23.3 | 11.7 | 3 | 25 MHZ - 110 Min | 100 MHZ - 155 Min |
| LF-100 (W) | 33.0 | 22.8 | 22.8 | 11.7 | 3 | 25 MHZ - 110 Min | 100 MHZ - 155 Min |
| LF-110 | 36.0 | 32.0 | 11.0 | 20.5 | 5 | 25 MHZ - 60 Min | 100 MHZ - 95 Min |
| LF1130 | 36.0 | 32.0 | 11.0 | 20.5 | 5 | 25 MHZ - 60 Min | 100 MHZ - 95 Min |
| LF-130 | 33.0 | 30.1 | 30.4 | 14.0 | 3 | 25 MHZ - 110 Min | 100 MHZ - 180 Min |
| LF-130 (W) | 33.0 | 30.1 | 30.4 | 14.0 | 3 | 25 MHZ - 110 Min | 100 MHZ - 180 Min |
| LF1330 (LF-130-1) | 39.0 | 34.0 | 13.0 | 30.0 | 5 | 25 MHZ - 60 Min | 100 MHZ - 150 Min |
| LF1330A (LF-130-2) | 36.0 | 23.5 | 22.0 | 13.0 | 2 | 25 MHZ - 50 Min | 100 MHZ - 100 Min |
| LF-35 | 25.2 | 14.7 | 14.5 | 3.8 | 1 | 25 MHZ - 35 Min | 100 MHZ - 95 Min |
| LF-50 | 29.4 | 15.9 | 15.7 | 5.4 | 1 | 25 MHZ - 55 Min | 100 MHZ - 100 Min |
| LF-50-1 | 23.4 | 13.4 | 14.0 | 6.1 | 3 | 25 MHZ - 65 Min | 100 MHZ - 120 Min |
| LF-50-2 | 25.1 | 12.7 | 11.3 | 5.1 | 2 | 25 MHZ - 55 Min | 100 MHZ - 100 Min |
| LF-65 | 32.9 | 18.1 | 19.4 | 8.0 | 3 | 25 MHZ - 120 Min | 100 MHZ - 180 Min |
| LF-75 | 35.1 | 19.5 | 17.5 | 8.9 | 2 | 25 MHZ - 90 Min | 100 MHZ - 125 Min |
| LF-90 | 35.1 | 19.5 | 17.5 | 9.2 | 2 | 25 MHZ - 80 Min | 100 MHZ - 110 Min |
| RC-120 | 17.8 | 27.6 | 27.6 | 11.1 | 4 | 25 MHZ - 45 Min | 100 MHZ - 90 Min |
| RC-150 | 15.5 | 28.8 | 28.8 | 13.3 | 4 | 25 MHZ - 30 Min | 100 MHZ - 60 Min |
| RC-80 | 16.9 | 19.0 | 19.0 | 8.3 | 4 | 25 MHZ - 40 Min | 100 MHZ - 80 Min |
| RC-80-1 | 20.0 | 19.0 | 19.0 | 8.2 | 4 | 25 MHZ - 55 Min | 100 MHZ - 100 Min |
